CGS lab

Classical Genetics Simulator

A web-based genetics lab, allowing students to apply lessons in Mendelian genetics to real-world scenarios.

Why use a computer simulation?

  • Many generations of genetic inheritance can be studied more quickly than with live organisms
  • Organisms do not need to be created or destroyed
  • CGS is customizable and easy to use


Drosophila

Drosophila Vials

Investigate wild populations and trait linkage

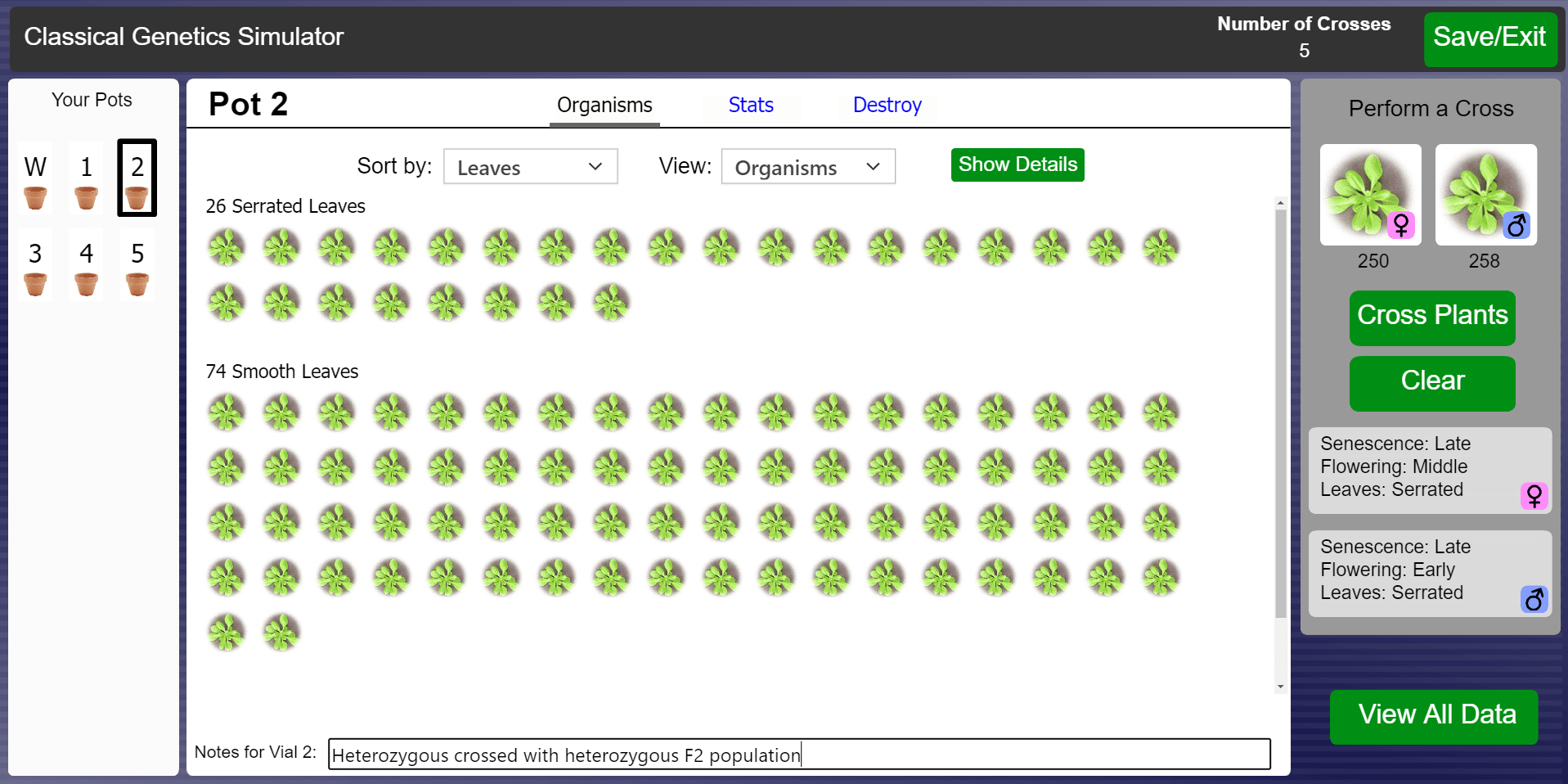

Arabidopsis

Arabidopsis Plants

Observe genotype and phenotype segregation patterns
Drosophila

Chi Squared Statistics

Use statistics to support your findings
Arabidopsis

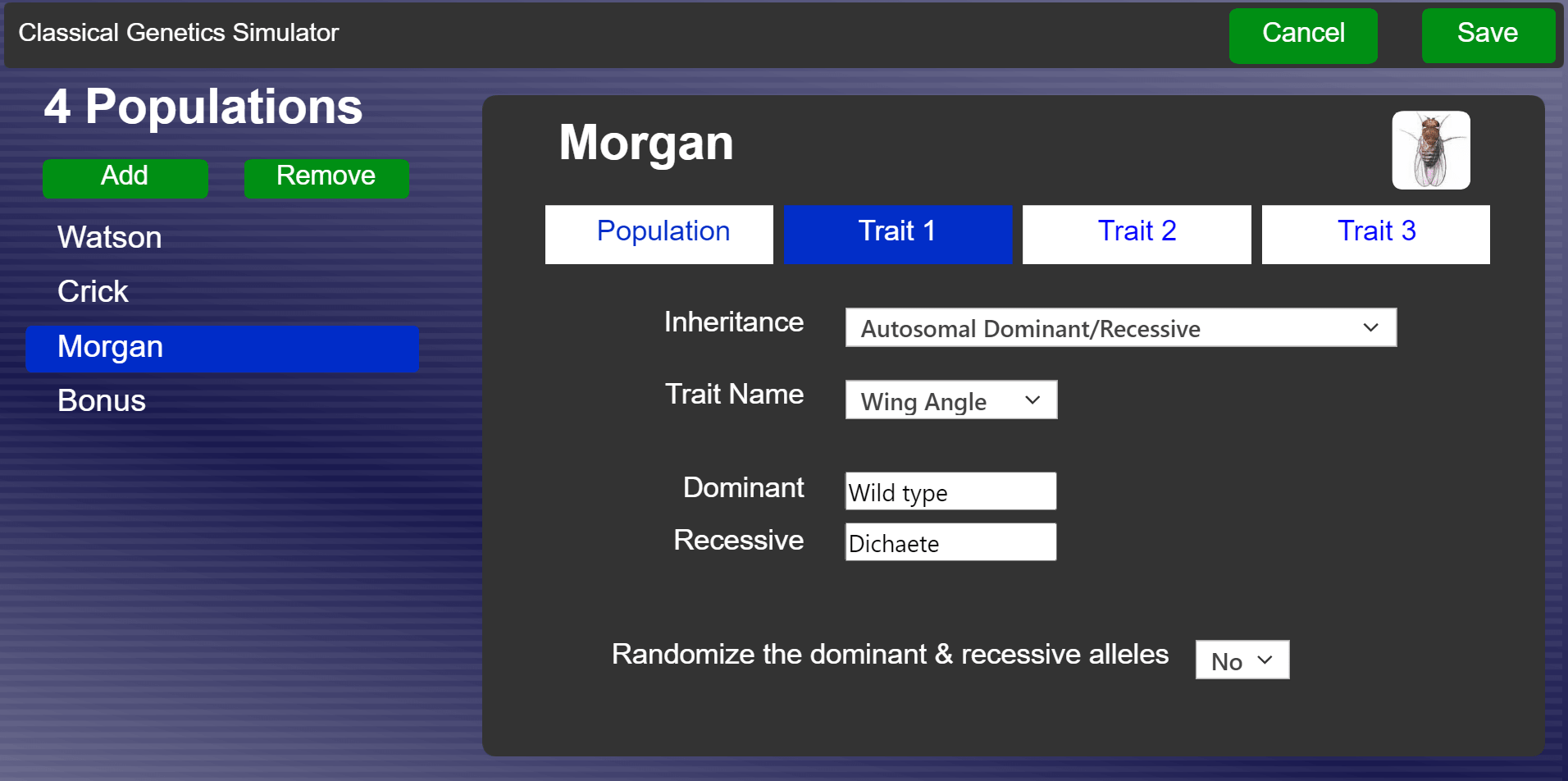

Instructor Dashboard

Create custom populations

Getting Started

Use the button at the top of the screen to launch CGS in a new window.

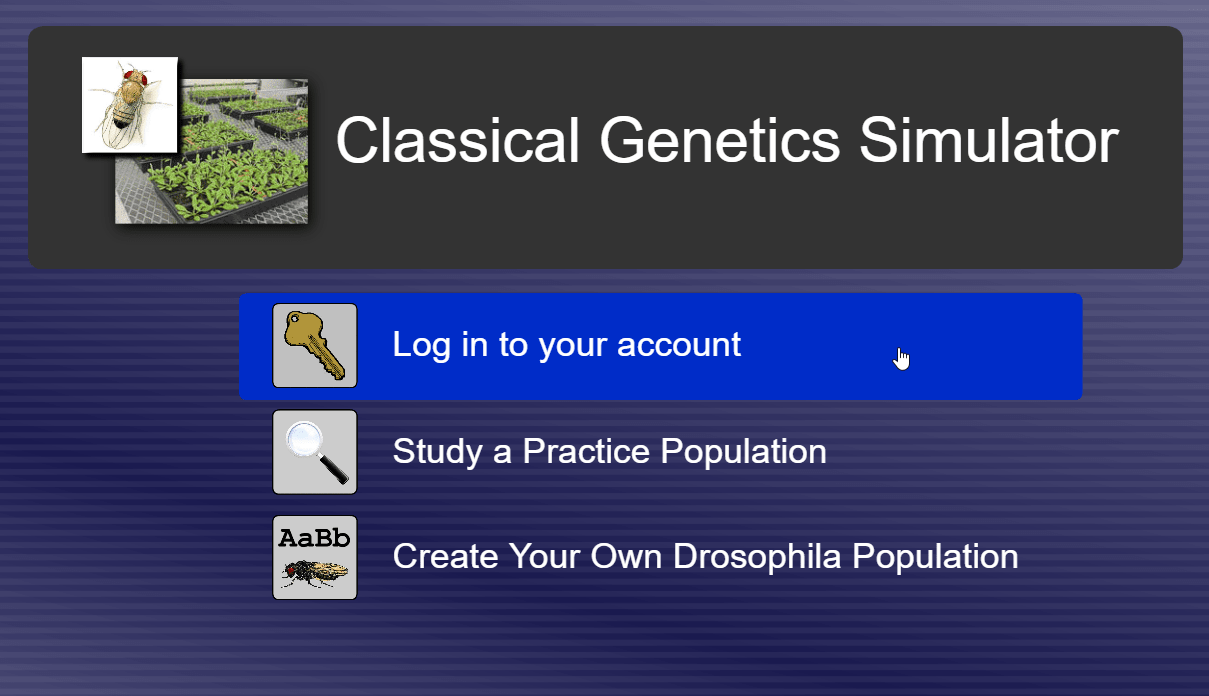

Once the app has loaded, click on Login to Your Account. If you do not have an account, you can study the practice populations, or to create your own popultion using a physical chromosome map.

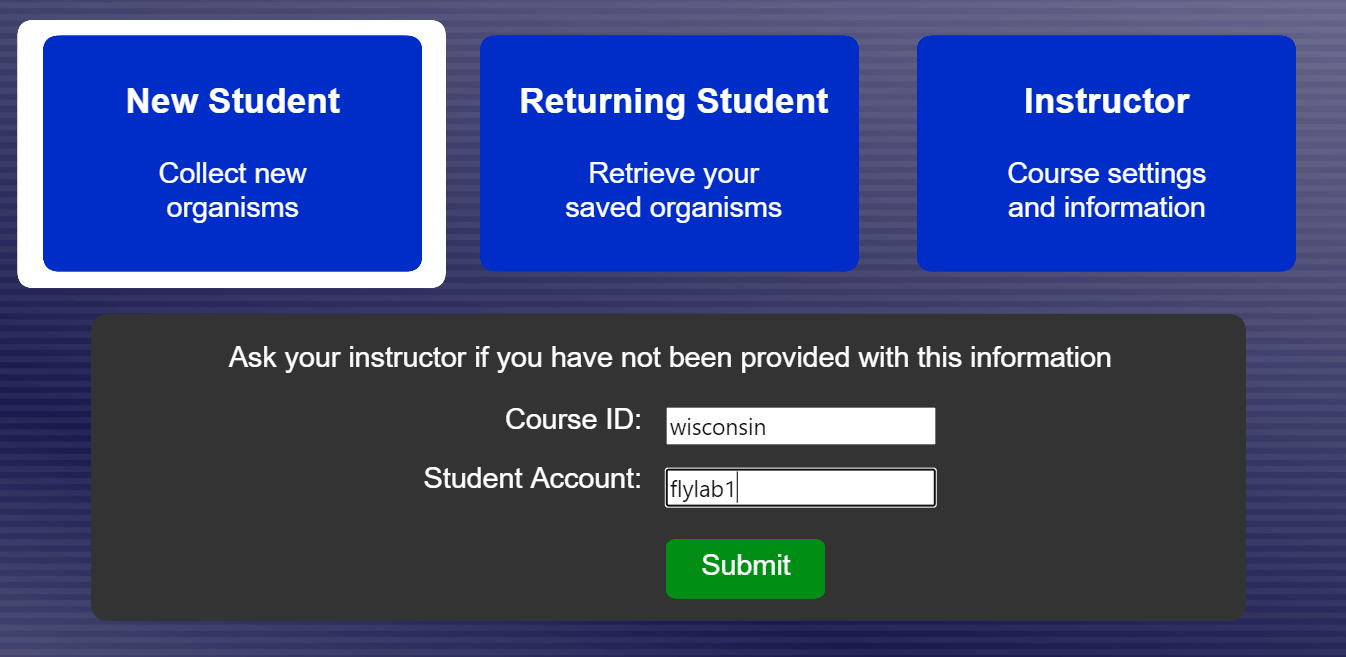

Click on New Student if this is the first time you are logging in. Enter the CourseID and Student account information provided by your instructor.

If you do not have this information, click the Exit button and choose another option from the first menu.

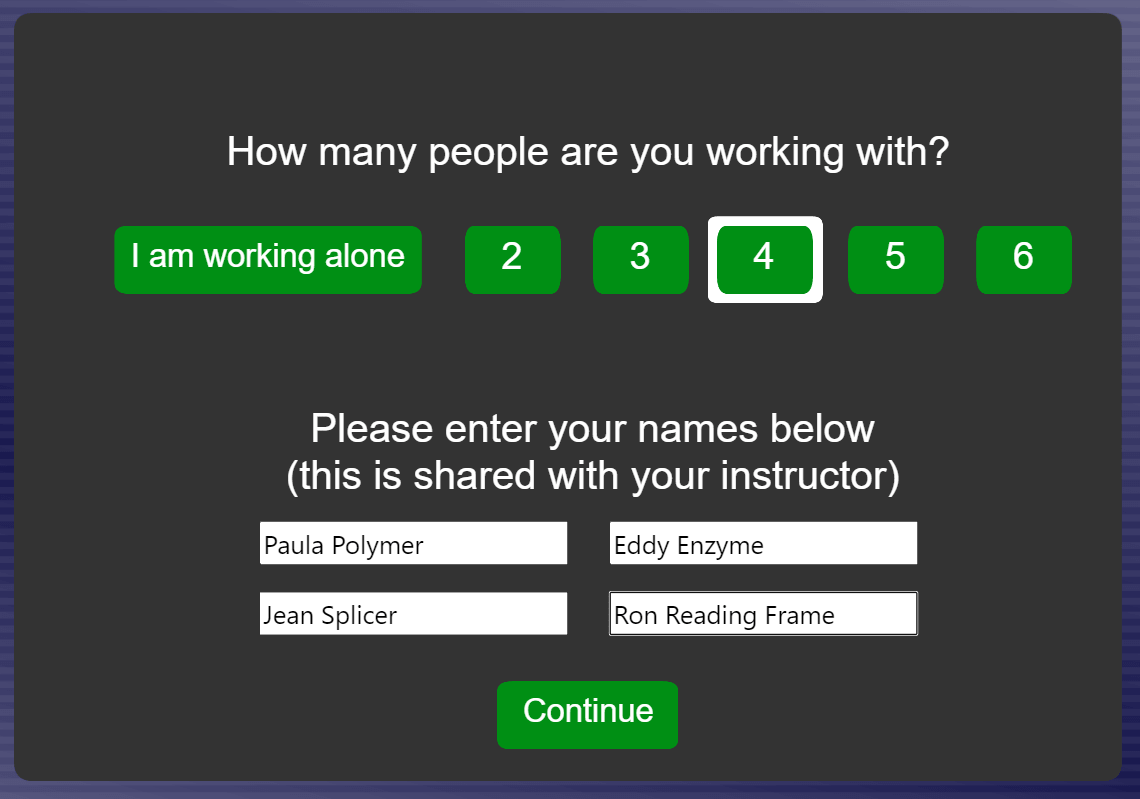

If you are working on your own, click the I am working alone button and enter your name. Otherwise, click the number of people in your group and enter your names (if requested).

You will then be issued a password that can be used the next time you log in. Write this down so you can retrieve your organisms the next time you log in!

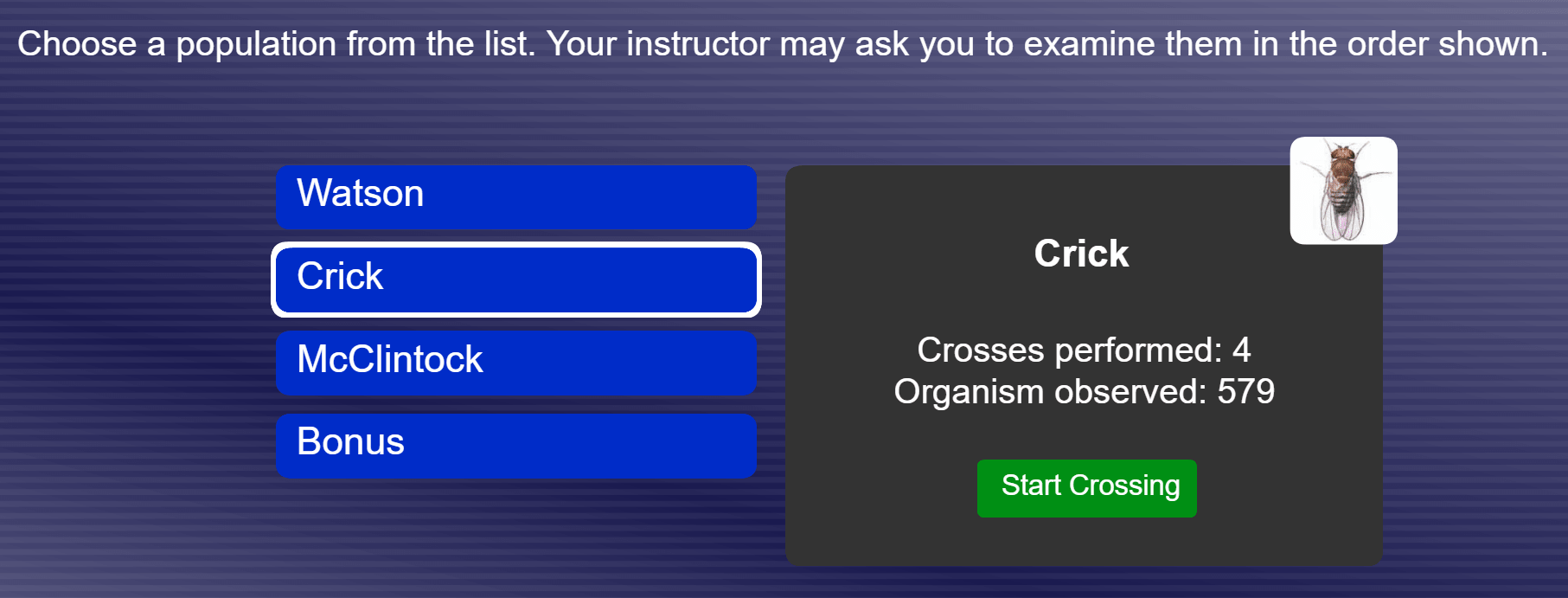

On the next screen you will see a list of populations that your instructor has set up for you to investigate. Choose a population from the list and click Start Crossing.

If this is your first time investigating the population that you have chosen, you will see a screen that tells you about the wild organisms that you will examine. Each wild population has at least one segregating trait, and you will need to perform test crosses to characterize the heritability of each trait.

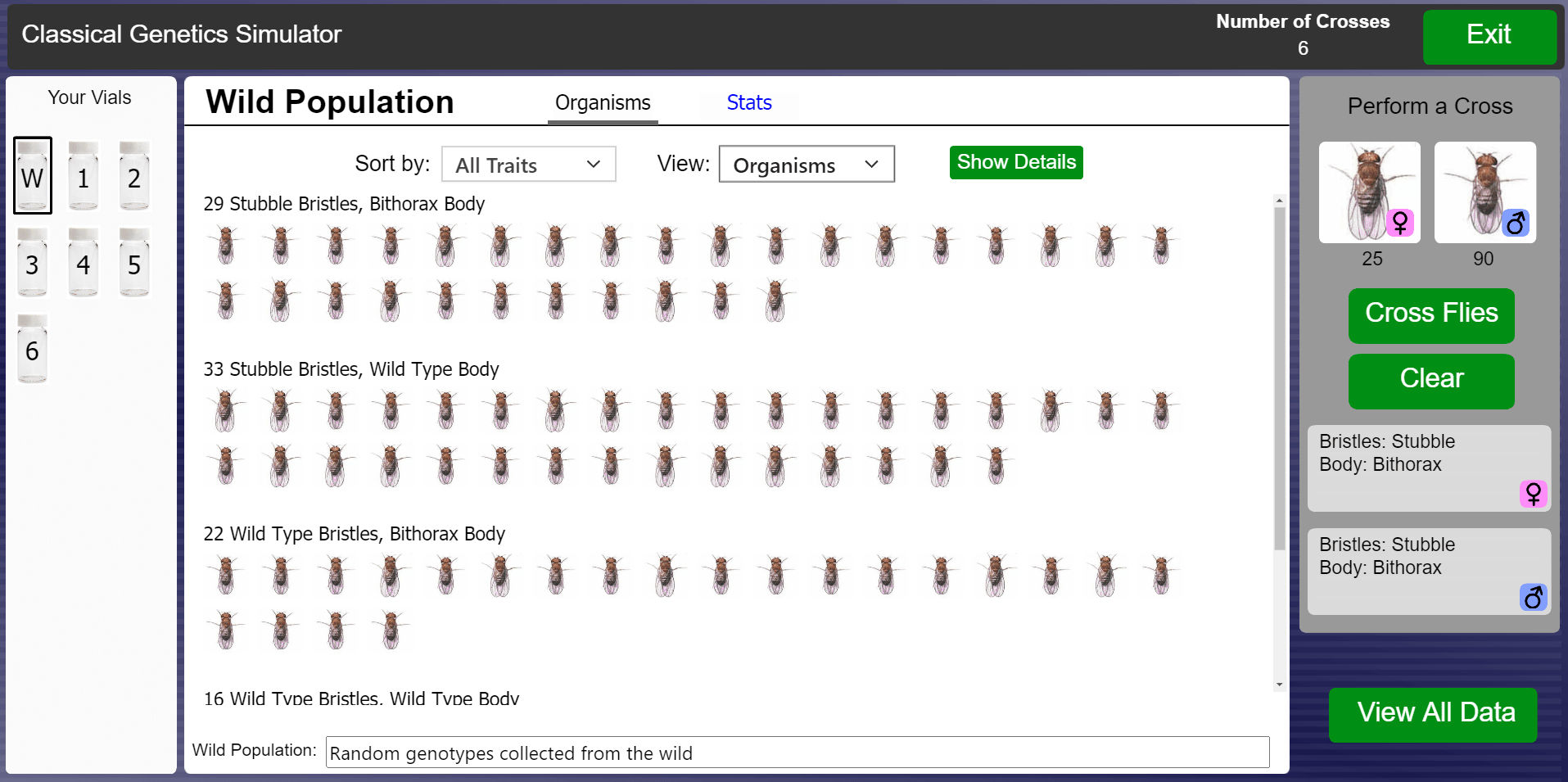

Organisms can be crossed by clicking one male parent (or pollen donor, etc) and one female donor to add them to the crossing box on the right side of the screen. Once two organisms are in the crossing box, click the "Cross" button to create a new generation.

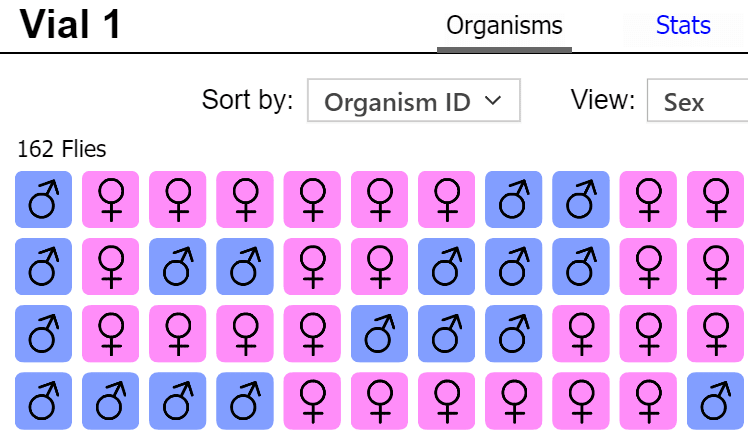

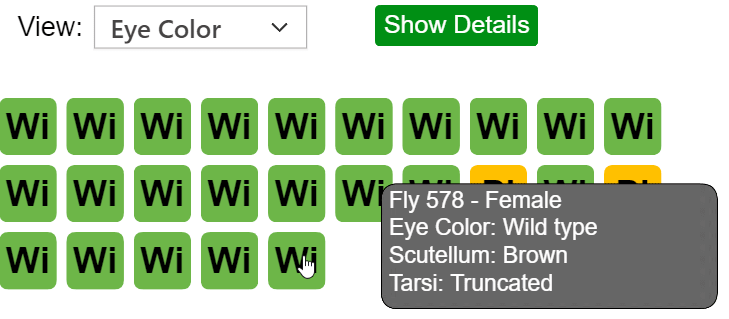

Use the sort and view options to find the organisms that you want to use for the next cross.

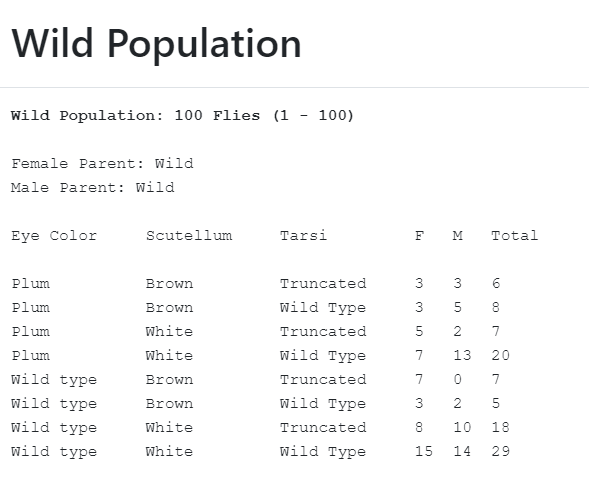

Click on the Show Details button to see the number of organisms with each phenotype.

You can store additional notes with each vial, and these will be saved to help you track your crosses.

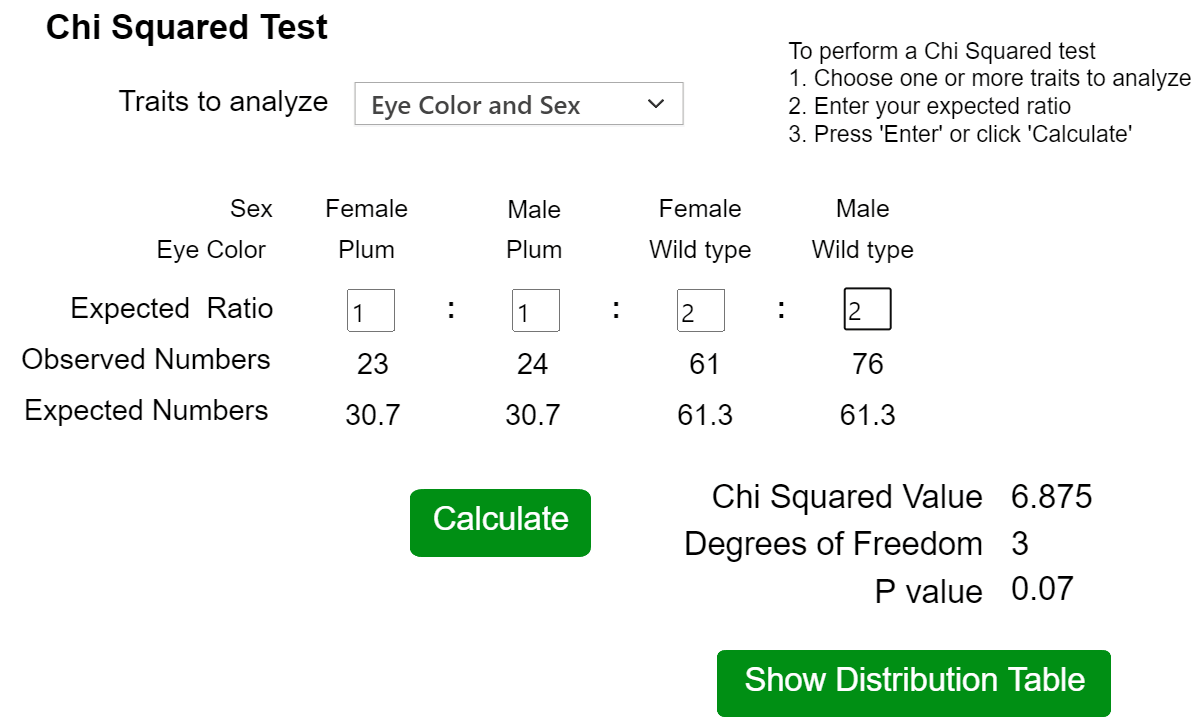

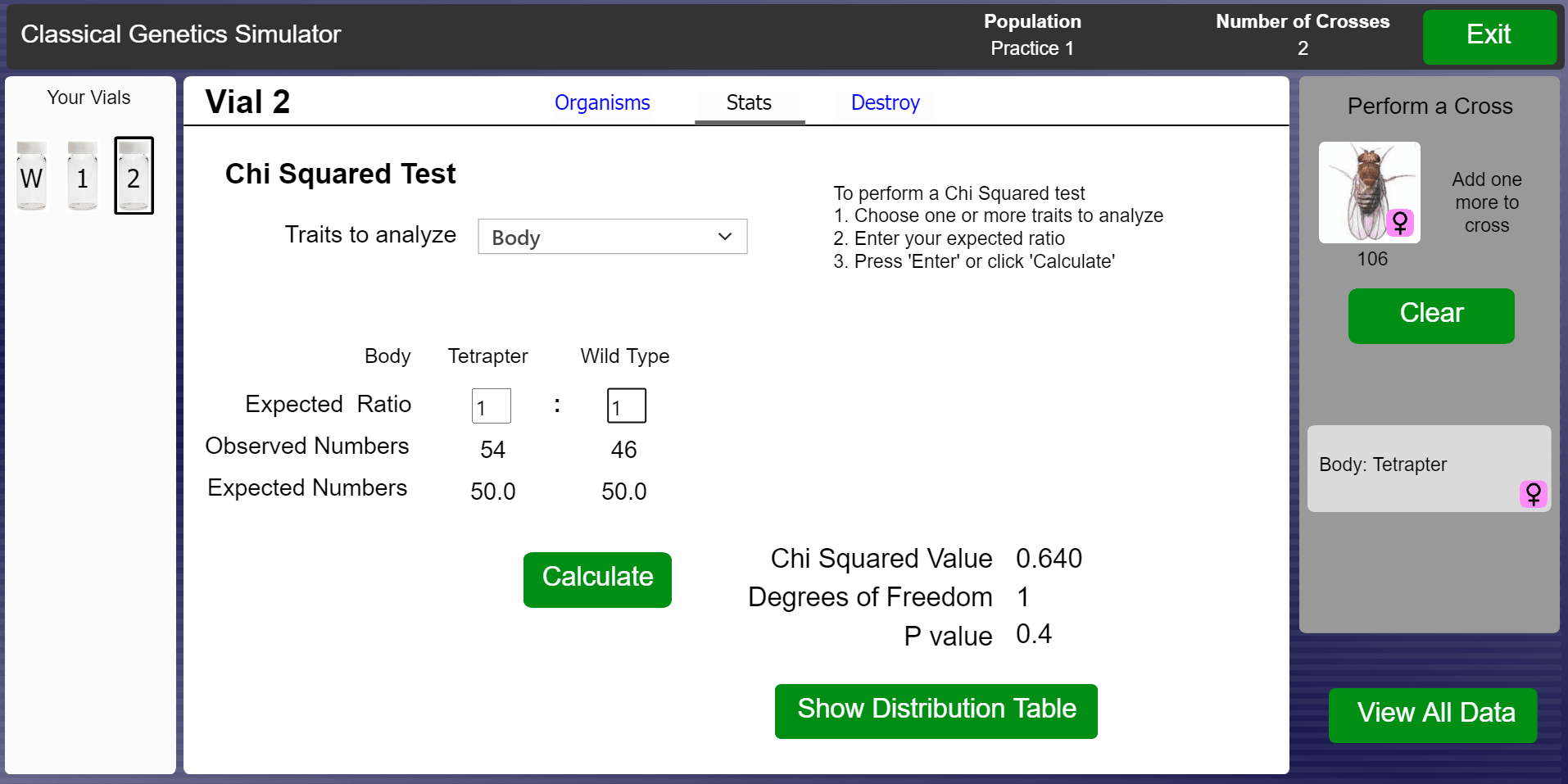

Click on the Stats tab to perform a Chi Squared test with the organisms in this vial

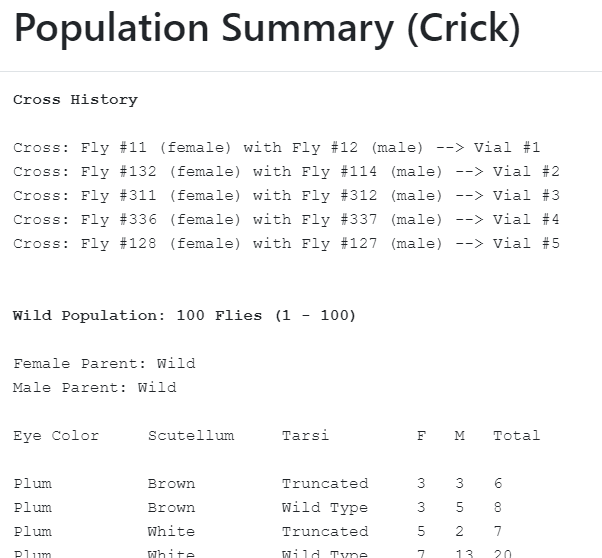

To view all of the data that you have collected for this population, click the View All Data button on the bottom right corner.

You can see your cross history and a summary of each vial, along with any notes that are attached to the vials.

Don’t forget to save your population before you quit.

Click the “Save/Exit” button in the lower left corner to save and return to the population list.
